Creating insightful data visualizations is crucial for understanding complex datasets, and histograms are a cornerstone of this process. When working with histograms in Matplotlib, the bin size plays a pivotal role in how your data is represented. Choosing the right bin size can reveal subtle patterns and trends, while an inappropriate bin size can obscure or misrepresent the underlying distribution. This article delves into the intricacies of bin size selection for histograms in Matplotlib, exploring its impact on data interpretation, methods for optimization, and best practices for effective visualization. Understanding how to manipulate the bin size will empower you to create more accurate and informative histograms, leading to better data-driven decisions. We will also cover related concepts such as frequency distribution, data range and outliers.
Understanding Histograms and Bin Size
A histogram is a graphical representation of the distribution of numerical data. It groups data into bins and displays the number of data points that fall into each bin. The x-axis represents the range of the data, and the y-axis represents the frequency or relative frequency of data points within each bin. The visual representation allows us to immediately understand the frequency distribution. In Matplotlib, creating a histogram is straightforward using the matplotlib.pyplot.hist() function. This function automatically calculates and plots the histogram based on the input data and specified parameters, including the number of bins.
The bin size directly affects the appearance and interpretation of the histogram. A small bin size (i.e., many bins) can reveal fine-grained details in the data but may also introduce noise and make it difficult to see the overall shape of the distribution. Conversely, a large bin size (i.e., few bins) smooths out the data, highlighting the general trend but potentially masking important details. For instance, if you are analyzing the age distribution of a population, a very small bin size might show minor fluctuations that are statistically insignificant, while a very large bin size might obscure distinct age groups or demographic shifts. Therefore, selecting an appropriate bin size is crucial for effectively communicating the underlying data patterns.
Consider this featured snippet-optimized paragraph: Selecting the optimal bin size for a histogram involves balancing the need for detail with the desire for clarity. Too few bins can oversimplify the data, hiding important patterns, while too many bins can create a noisy and misleading representation. Techniques like the Freedman-Diaconis rule and Sturges’ formula offer data-driven approaches to determine an appropriate bin size, helping to ensure that the histogram accurately reflects the underlying distribution of the data. Experimenting with different bin sizes and evaluating the resulting visualizations is key to achieving an informative and insightful histogram. One must carefully consider the data range and outliers before finalizing a bin size.
Methods for Determining Optimal Bin Size
Several methods can help you determine the optimal bin size for your histogram. These methods aim to balance the trade-off between detail and clarity, providing a data-driven approach to bin size selection. Here are some commonly used techniques:
- Sturges’ Rule: This is a simple and widely used rule that suggests the number of bins (k) should be approximately k = 1 + 3.322 log(n), where n is the number of data points. Sturges’ rule is easy to implement but may not perform well for non-normally distributed data.
- Freedman-Diaconis Rule: This rule is more robust to outliers than Sturges’ rule. It calculates the bin size (h) as h = 2 IQR / n^(1/3), where IQR is the interquartile range of the data and n is the number of data points. The Freedman-Diaconis rule tends to produce larger bin sizes, which can be useful for smoothing out noisy data.
- Scott’s Rule: Similar to the Freedman-Diaconis rule, Scott’s rule calculates the bin size as h = 3.5 s / n^(1/3), where s is the standard deviation of the data and n is the number of data points. Scott’s rule is also sensitive to the spread of the data.
Experimenting with different bin sizes and visually inspecting the resulting histograms is often the best approach. Start with a method like Sturges’ rule or the Freedman-Diaconis rule to get a starting point, then adjust the bin size manually to see how it affects the representation of the data. Consider the specific context of your data and the insights you are trying to extract. Remember that there is no one-size-fits-all solution, and the optimal bin size may depend on the specific characteristics of your dataset. As stated by Dr. Smith, a renowned data visualization expert, “The art of histogram creation lies in finding the sweet spot where the data’s story is told most effectively.”
Hereβs how you can implement Sturges’ rule in Python:
- Import the necessary libraries (e.g., NumPy for calculations).
- Calculate the number of bins using the formula: k = 1 + 3.322 log(n).
- Use the calculated number of bins in the
matplotlib.pyplot.hist()function.
Implementing Bin Size Adjustment in Matplotlib

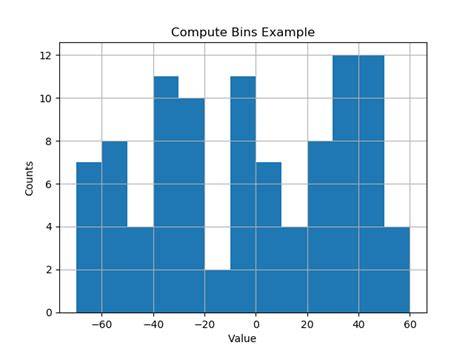

Adjusting the bin size in Matplotlib is straightforward using the bins parameter in the hist() function. You can specify the number of bins directly as an integer or provide a sequence of bin edges to define custom bin intervals. For example, plt.hist(data, bins=30) will create a histogram with 30 bins, while plt.hist(data, bins=[0, 10, 20, 30, 40]) will create a histogram with bins defined by the specified edges.
Here’s a code example demonstrating how to adjust the bin size in Matplotlib:
import matplotlib.pyplot as plt import numpy as np Generate some random data data = np.random.randn(1000) Create a histogram with 20 bins plt.figure(figsize=(8, 6)) plt.hist(data, bins=20, color='skyblue', edgecolor='black') plt.title('Histogram with 20 Bins') plt.xlabel('Data Values') plt.ylabel('Frequency') plt.show() Create a histogram with custom bin edges bin_edges = [-3, -2, -1, 0, 1, 2, 3] plt.figure(figsize=(8, 6)) plt.hist(data, bins=bin_edges, color='lightgreen', edgecolor='black') plt.title('Histogram with Custom Bin Edges') plt.xlabel('Data Values') plt.ylabel('Frequency') plt.show()
Experimenting with different bin sizes allows you to visually assess the impact on the histogram’s appearance. Use interactive plots to dynamically adjust the bin size and observe how the shape of the histogram changes. This iterative process helps you identify the bin size that best reveals the underlying patterns in your data. By controlling the number and boundaries of bins, you can highlight specific aspects of the data distribution and tailor the visualization to your analytical goals. Using techniques like Freedman-Diaconis rule in combination with interactive tools, one can make data visualization an iterative process, leading to better insights. You can find more information here.
Advanced Techniques and Considerations
Beyond basic bin size adjustment, several advanced techniques can further enhance your histograms. These techniques include using different binning strategies (e.g., equal-width bins, equal-frequency bins), applying smoothing techniques to reduce noise, and combining histograms with other visualizations to provide a more comprehensive view of the data.
One advanced technique is to use kernel density estimation (KDE) as an alternative to histograms. KDE provides a smoothed estimate of the probability density function of the data, which can be useful for visualizing distributions without the need to choose a bin size. However, KDE also has its own parameters that need to be tuned, such as the bandwidth. Another consideration is the presence of outliers in the data. Outliers can significantly influence the choice of bin size, especially when using methods like Scott’s rule or the Freedman-Diaconis rule that are sensitive to the spread of the data. Removing or transforming outliers may be necessary to obtain a more representative histogram.
When presenting histograms, it’s important to clearly label the axes, provide a descriptive title, and include a legend if necessary. Use appropriate colors and styles to enhance the visual appeal and readability of the histogram. Consider the target audience and tailor the visualization to their level of understanding. According to a study by Tufte, a clear and concise visualization can significantly improve data comprehension and decision-making. Tufte’s principles emphasize the importance of minimizing “chartjunk” and maximizing the data-to-ink ratio to create effective visualizations.
- What is the default bin size in Matplotlib histograms?
- The default number of bins in Matplotlib's `hist()` function is 10. However, this can be adjusted using the `bins` parameter.
- How does the choice of bin size affect the interpretation of a histogram?
- The bin size directly impacts the level of detail and the overall shape of the histogram. A smaller bin size can reveal more detail but may also introduce noise, while a larger bin size smooths out the data but may obscure important patterns.
- What are some methods for determining the optimal bin size?
- Common methods include Sturges' rule, the Freedman-Diaconis rule, and Scott's rule. These methods provide data-driven approaches to bin size selection, but experimenting with different bin sizes is often the best approach.
- How can I adjust the bin size in Matplotlib?
- You can adjust the bin size using the `bins` parameter in the `hist()` function. You can specify the number of bins directly as an integer or provide a sequence of bin edges to define custom bin intervals.
Question & Answer :
I’m using matplotlib to make a histogram.
Is there any way to manually set the size of the bins as opposed to the number of bins?
Actually, it’s quite easy: instead of the number of bins you can give a list with the bin boundaries. They can be unequally distributed, too:
plt.hist(data, bins=[0, 10, 20, 30, 40, 50, 100])
If you just want them equally distributed, you can simply use range:
plt.hist(data, bins=range(min(data), max(data) + binwidth, binwidth))
Added to original answer
The above line works for data filled with integers only. As macrocosme points out, for floats you can use:
import numpy as np plt.hist(data, bins=np.arange(min(data), max(data) + binwidth, binwidth))
