How to see the values of a table variable at debug time in T-SQL

Navigating the complexities of T-SQL development often brings developers face-to-face with a peculiar challenge: how to see the values of a table variable at debug time in T-SQL. Unlike regular local variables or even temporary tables, table variables have a scope and behavior that make them notoriously difficult to inspect directly using traditional debugging tools within SQL Server Management Studio (SSMS). This often leads to frustrating guesswork and a slower debugging process, especially when dealing with intricate stored procedures or functions. Understanding the underlying reasons for this limitation and, more importantly, discovering effective workarounds is crucial for any T-SQL developer aiming for efficiency and accuracy. This guide will delve into the nuances of table variables and provide actionable strategies to unveil their contents during a debugging session, transforming a common headache into a manageable task.

Understanding Table Variables and Debugging Challenges

Table variables in T-SQL are powerful, memory-resident data structures that behave much like temporary tables but with key differences in scope, logging, and transaction behavior. They are declared using the DECLARE @table_variable TABLE (...) syntax and are typically used for intermediate result sets within a single batch, stored procedure, or function. Their primary advantage lies in their reduced logging, which can lead to better performance for small, short-lived data sets compared to traditional temporary tables, as they don’t incur the same overhead of transaction logging and locking.

The inherent challenge when attempting to debug T-SQL code that utilizes table variables stems from their internal implementation. SQL Server treats table variables somewhat like internal objects, and their values are not directly exposed to the debugger’s watch window or local variables pane in SSMS. This design choice contributes to their efficiency by minimizing overhead but creates a visibility gap for developers trying to diagnose issues. When you set a breakpoint and try to inspect a table variable, you’ll often find it listed as “unavailable” or simply not present in the debugger’s scope, leading to a significant hurdle in understanding the flow of data within your logic.

This limitation means that common debugging practices, such as hovering over a variable or adding it to the ‘Watch’ window, are ineffective for table variables. Developers are left without a clear view of the data held within these variables at specific points of execution, forcing them to rely on less direct methods. Overcoming this visibility barrier is essential for effective troubleshooting and ensuring the correctness of complex T-SQL logic that heavily relies on these in-memory structures.

Traditional Debugging with SQL Server Management Studio (SSMS)

SQL Server Management Studio provides a robust debugger that allows developers to step through T-SQL code line by line, set breakpoints, and inspect the values of variables. This functionality is invaluable for identifying logical errors, understanding execution flow, and optimizing performance. When you launch the debugger in SSMS, you gain access to various windows like Locals, Watch, Call Stack, and Output, which provide real-time insights into your script’s state.

However, when it comes to table variables, the SSMS debugger’s capabilities hit a wall. While you can declare and populate a table variable within a script, attempting to inspect its contents directly in the ‘Locals’ or ‘Watch’ window will prove futile. The debugger simply doesn’t expose the internal state of these objects in a human-readable format, nor does it allow you to ‘drill down’ into them like you might with a dataset in Visual Studio. This is a fundamental limitation of the SQL Server debugger’s interaction with table variables, distinct from how it handles temporary tables (which are visible in tempdb).

This means that if your code populates a table variable and then performs subsequent operations based on its contents, and an error occurs, pinpointing the exact state of that table variable at the point of failure becomes a significant challenge. You cannot simply pause execution at a breakpoint and view the data, making the process of debugging T-SQL that uses table variables a more involved and creative endeavor. According to a Microsoft documentation page on table variables, they are “not part of a transaction,” which further hints at their isolated nature within the execution context, contributing to their debug-time invisibility.

1. Start Debugging: Open your T-SQL script in SSMS and press Alt+F5 or click the “Debug” button.
2. Set Breakpoints: Place breakpoints on lines where your table variable is populated or used.
3. Attempt Inspection: When execution pauses at a breakpoint, try to find your table variable in the ‘Locals’ window or add it to the ‘Watch’ window.
4. Observe Limitation: You will notice that the table variable either doesn’t appear, or its value is shown as “unavailable” or “not supported for inspection.”
5. Continue Execution: Step through your code (F10 or F11) or continue (F5), realizing the direct inspection method is not viable.

Effective Workarounds to Inspect Table Variables

Method 1: SELECT Statements with Conditional Breakpoints

One of the most widely adopted and effective workarounds for how to see the values of a table variable at debug time in T-SQL is to insert temporary SELECT statements directly into your code. While seemingly simplistic, this method provides a direct view of the table variable’s contents at any point during execution. The key is to strategically place these SELECT FROM @YourTableVariable; statements at breakpoints where you need to inspect the data.

To implement this safely without affecting your production code, you can wrap these SELECT statements within conditional blocks that only execute during debugging. A common approach is to check for a specific session variable or a global flag. For example, IF SESSION_CONTEXT(N'DebugMode') = 'true' SELECT FROM @YourTableVariable; or IF 1=0 SELECT FROM @YourTableVariable; (if you just want to highlight the line for a breakpoint and manually execute it). During debugging, when execution hits the SELECT statement, the results will appear in the SSMS Messages window, giving you a snapshot of the table variable’s state. Remember to remove these statements before deploying to production, or ensure your conditional logic prevents them from running in a live environment.

• Pros:
  • Directly view data at specific execution points.
  • Easy to implement with minimal code changes.
  • No impact on the data or structure of the table variable.
• Cons:

  • Requires adding and removing/commenting out debugging code.

  • Can generate large outputs Question & Answer :
    Can we see the values (rows and cells) in a table valued variable in SQL Server Management Studio (SSMS) during debug time? If yes, how?

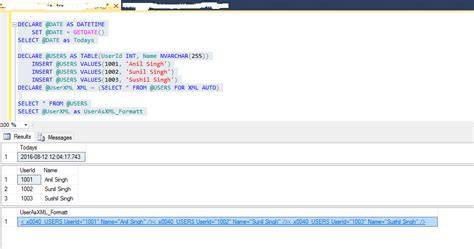

    DECLARE @v XML = (SELECT * FROM <tablename> FOR XML AUTO)


    Insert the above statement at the point where you want to view the table’s contents. The table’s contents will be rendered as XML in the locals window, or you can add @v to the watches window.
